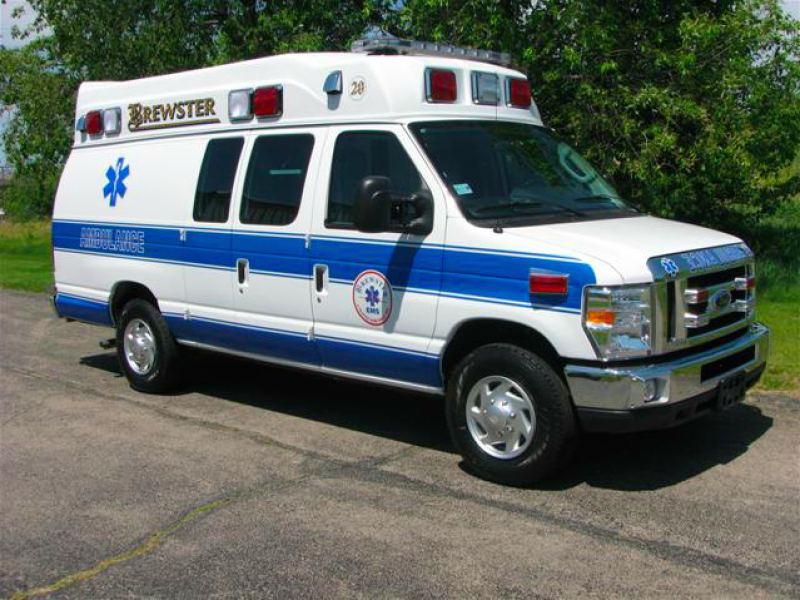

Marque Type II Squad 2

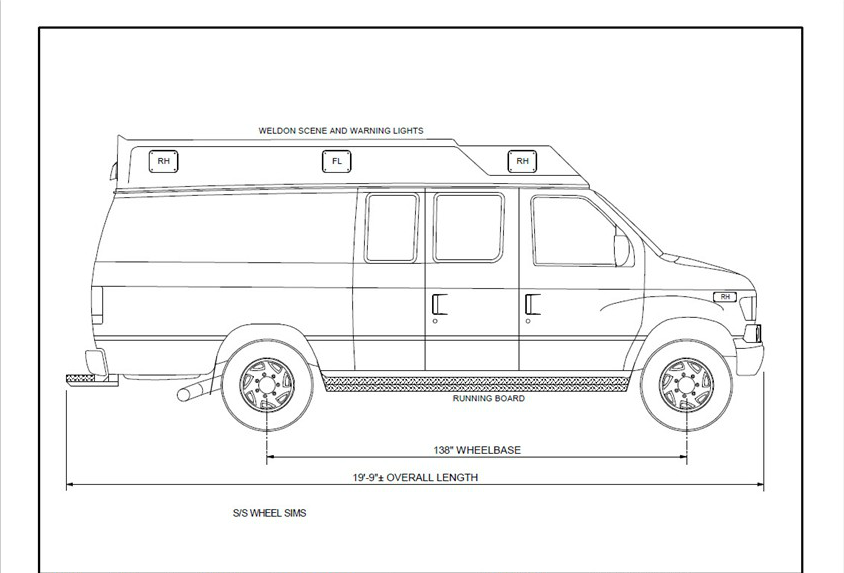

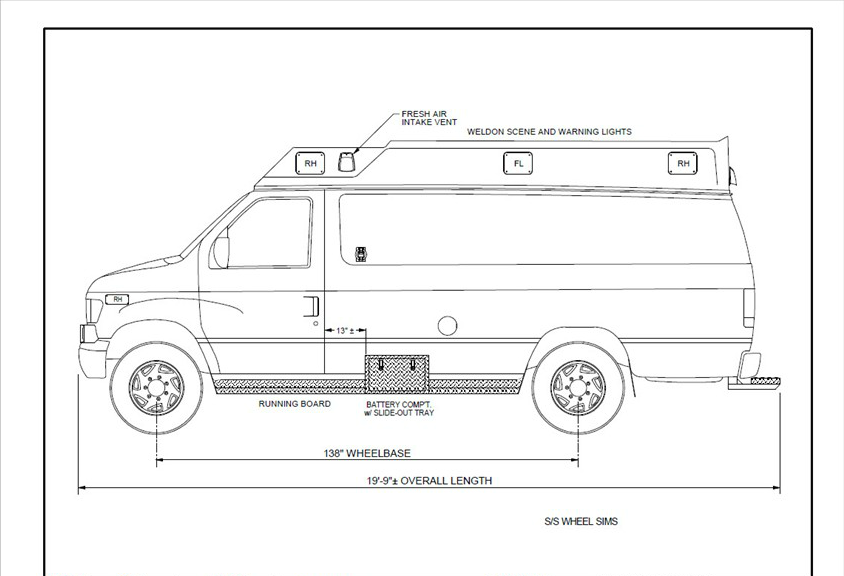

The Type II model for Marque ambulances is called theSquad 2. The Squad 2 comes in either a Ford E-350or the Dodge Sprinter chassis. The Squad 2 model comes with many great features from the body to the warning lights and sirens to the interior.

Body Features

• Roll Cage: Fully welded steel super structure with 1″x2″ ASTM A-36 channel

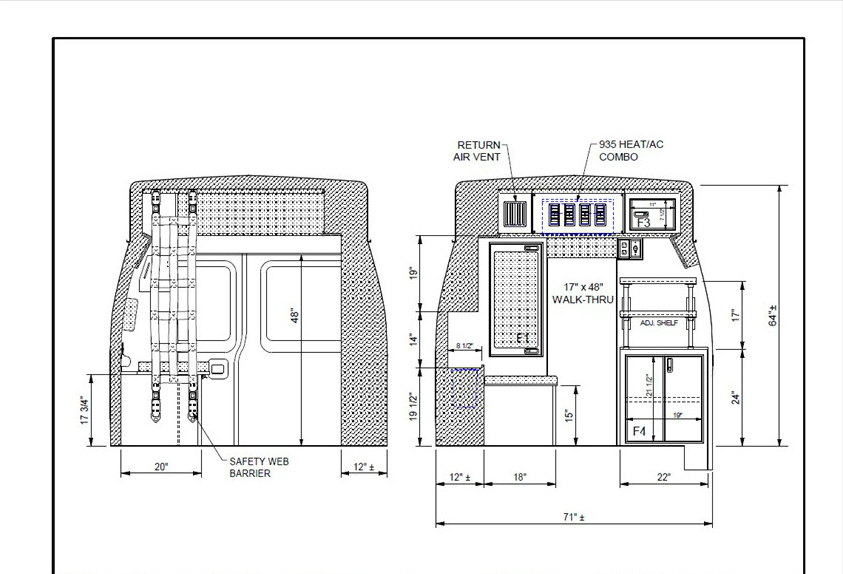

• Front Wall: Solid bulkhead with pass-thur window
• O2 Storage: Curbside rear wall - ‘M’ Tank
• Rear Step: Flip-up aluminum grip strut

Environmental Features

• A/C - Heater System: 650 CFM blower unit, 32,000 BTU A/C-35,000 BTU heating
• Vents, Power: Marine style with 3-speed fan
• Insulation: 3″ fiberglass batts

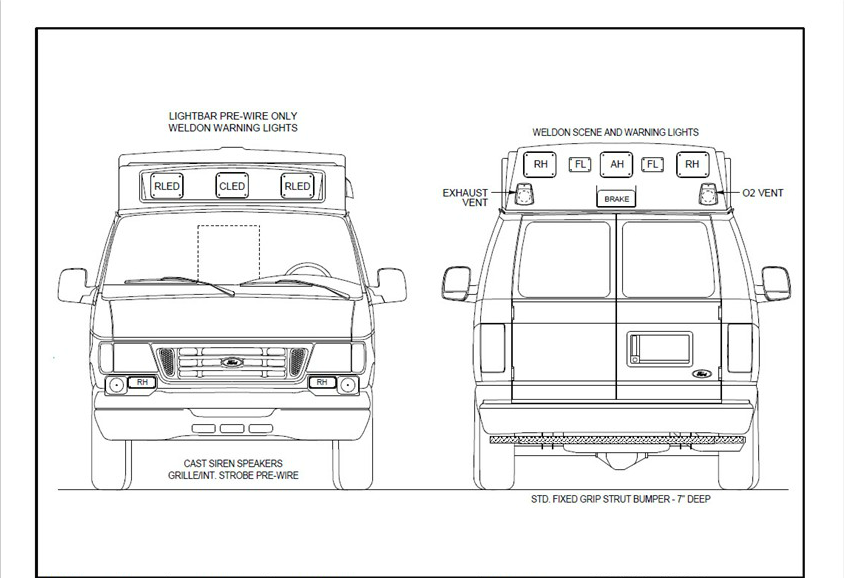

Warning Lights & Siren Features

• Flasher: Vanner Solid state for halogen lights
• Intersection Lights: (2) Whelen 700 Series Super-LED-Deutsch connectors
• Grille Lights: (2) Whelen 500 Series Super-LED-Deutsch connectors
• Warning Lights: (10) Whelen Halogen: (8) 900 Series red, (1) 900 Series clear front, center, (1) Whelen 600 Series amber halogen on rear center
• Load Lights: (2) Whelen 600 Series scene lights on rear
• Side Scene Lights: (4) Whelen 900 Series scene lights, two on each side
• Siren: Whelen WS-295HSFA7
• Speakers: (2) CPI with 100 watt drivers
• Back-Up Alarm: 97 Db with momentary cutoff
• Spotlight: (1) 400,000 CP hand-held light with momentary switch hard wired to OEM dash

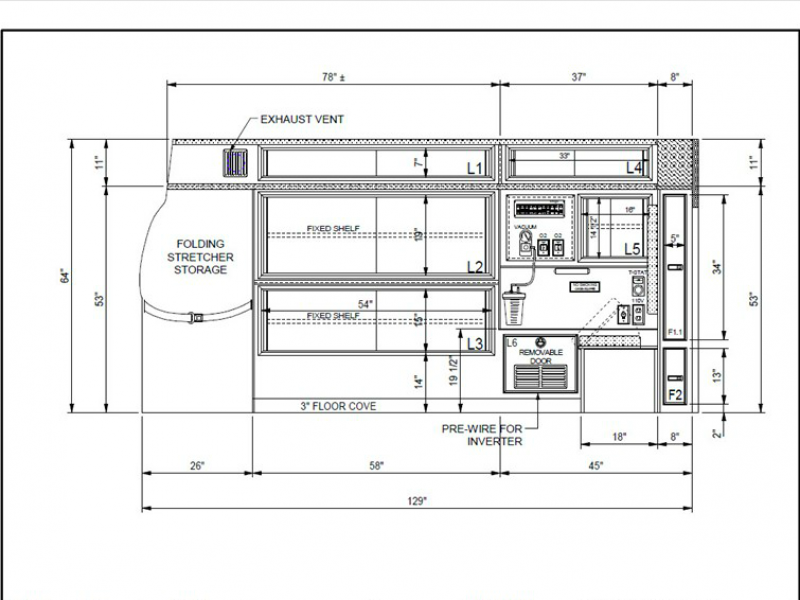

Interior Features

• Interior Height: Minimum 65″ of headroom
• Dome Lights: (6) Dual Filament, Incandescent, Two rows of three each, switched separately
• Cot Mount: Ferno-Washington 175-5

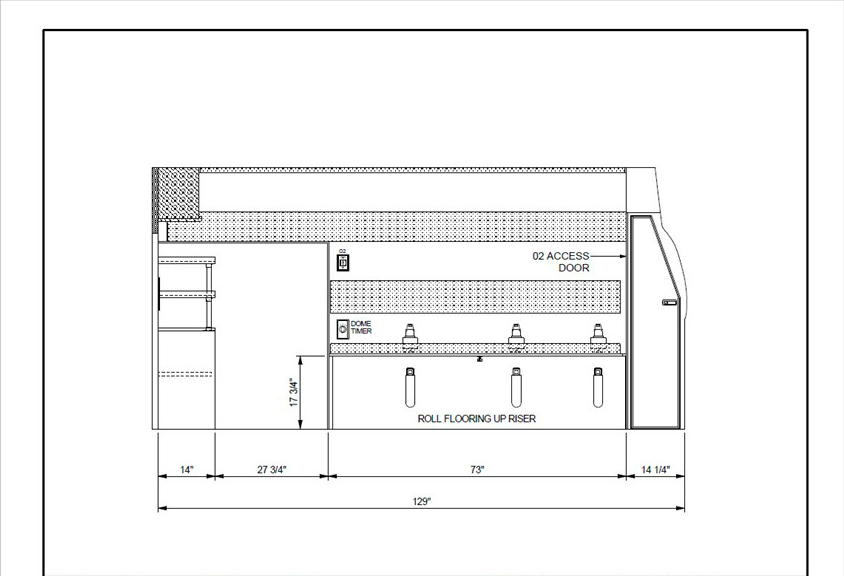

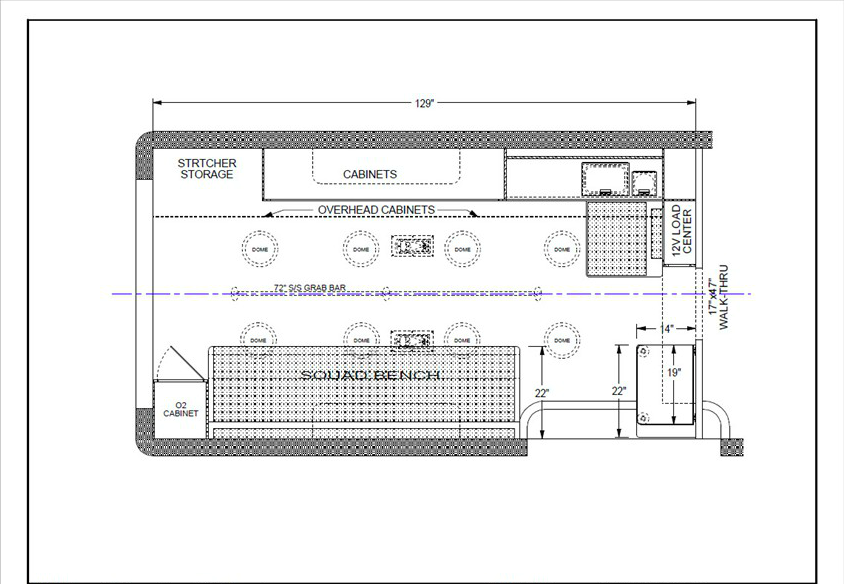

• Squad Bench: Backboard slot including two hinged lids with storage underneath, hazardous waste and Sharps disposal container at head-end

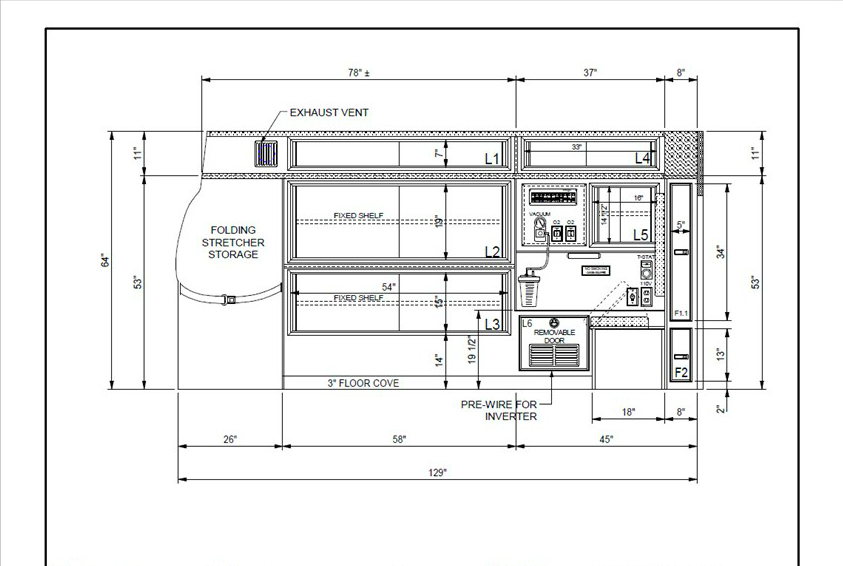

• ALS Cabinet: One closable compartment on bottom with door, one fixed shelf, one upper ALS with plexiglass door and adjustable shelf
• Flooring: Rolled up sidewalls 3″ non slip Loncoin
• Aspirator: Rico RS-4X disposable with electric vacuum pump
• Attendant Seat

• 12 Volt circuit board
• 12 VDC Outlets: (2) Cigarette style one in action area, One in ALS Cabinet
• 115 VAC Outlets: (2) Duplexes; One in action area, one over squad bench
• Shoreline: 115 VAC, 20 Amp With mating plug with GFI protection
• Etched-Trace Power Circuits: HD-3 Oz. for increased service life
• Etched-Trace Control Circuits: HD-3 Oz. for dependable service
• HD Machine Crimped Harness: Pull and load tested, prewired for halogen or LED Lighting systems provides a rugged dependable network
• Inverter: Prewired for Vanner inverter
• Clock: LED in rear control panel
