Marque Type I Brigadier

The Brigadier Type I model for Marque ambulances comes it different wheel bases which determine the different chassis options available.

Body Features

• Modular Body: Fully welded, roll cage design, 2″x2″ tubular structure on 12” centers for strength and durability
• Rear Bumper: Entire bumper assembly hinged to allow bumper to tilt up in high angle departure situations
• Crowned roof to inhibit water pooling
• Oxygen Storage: Streetside front compartment with adjustable steel rings for M-size cylinder
• .125 Body Side Skin: For added strength and a smooth seamless finish
• Compartments: Aluminum diamond plate construction
• Running boards with grip strut
• Fender Flares: Stainless Steel

Door Features

• Extruded door jams: Heavy duty, key locked and fully welded for improved fit
• Extruded/Pan Hybrid doors: Heavy duty, key locked with .125 pan formed skin for enhanced strength and improved finish
• Integrated Door Seal: Reduces wear on seal and eliminates outer contamination of doors, compartments and module
• One-Piece Liners

Environmental Features

• A/C – Heater System: Ducted system with ceiling vents; 650 CFM blower unit, 35,000 BTU heat, 32,000 BTU cooling

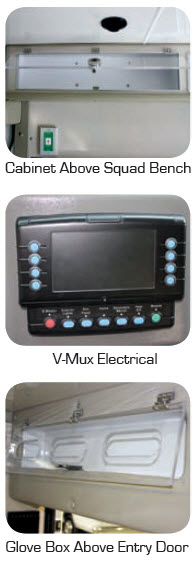

• Thermostat: V-Mux Multiplex electrical system
• Insulation: Spray foam in ceiling, walls and doors
• Power Vents: Marine style with three (3) speed fans

Warning Lights & Siren Features

• Siren: Siren controls located in front console
• Siren speakers: Two (2) 100-watt drivers
• Back Up Alarm: 97Db with momentary cutoff

Interior Features

• Spotlight: One (1) 400,000 CP hand-held light with momentary switch
• Cot Mount: Ferno-Washington 175-4
• Flooring: Lon Seal “Lon plate II”
• IV Holders: Two (2) dual, swing down rubber holders with Velcro retaining straps
• Aspirator: Rico RS-4X disposable
• O2 and Vacuum Outlets: Three (3) oxygen outlets (one in Action area, one in ceiling, one above squad bench) and one (1) vacuum outlet in action area
• Technician’s Seat: High-back automotive style seat with swivel base
• Aluminum Cabinetry: customer choice of standard colors
• ALS Cabinet: Storage for trauma kits with locking top section
• Plexiglas windows: Sliding door with full length aluminum handles
• Upholstery: Seamless cushions

Power Distribution/Electrical Features

• HD Machine Crimped Harness: Pull and load tested to provide a rugged dependable network
• Inverter: Prewire
• Clock: Located in Module
• Electrical Outlets: Three (3) 125V GFI protected; Two (2) 12V outlets in module
